A1 Charger/Discharger

SKU: BRC824
$99.00 (USD)
Touch Screen AC/DC Charger/Discharger 1-6 Cells with 12v/240v
Availability: In stock
+ -
Description

The all new A1 charger brings a high resolution LCD touch screen interface and can connect directy to you car battery at the field.

The A1 is able to charge, balance and discharge Lion, LiPo, LiFe (A123), NiCd, NiMH and Lead Acid batteries. I also has battery cycling functions to test and bed in new batteries.

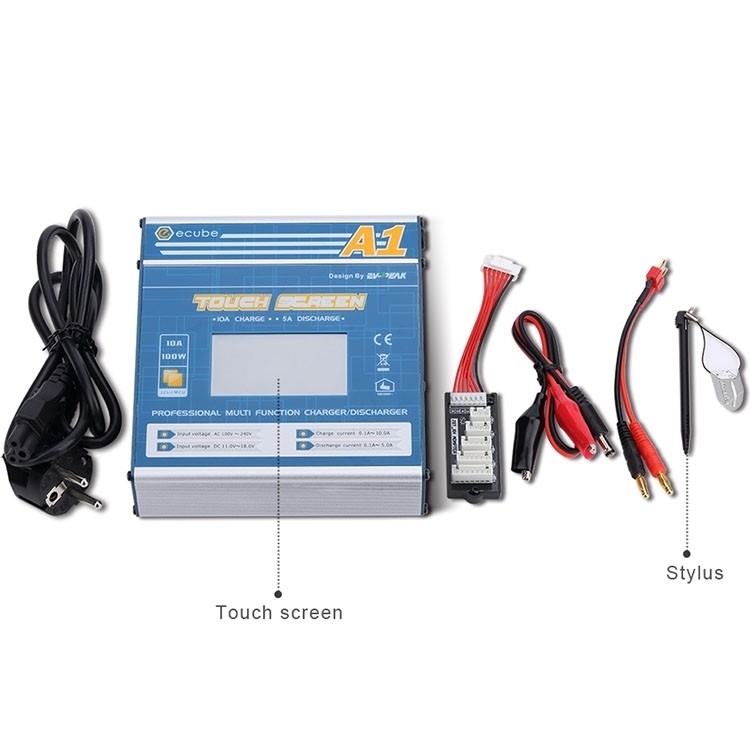

Supplied with a range of Heavy duty Deans Ultra connection leads for maximum power and minimum voltage loss connection to almost all RC devices.

Features; Microprocessor controlled Delta-peak sensitivity Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable Large range of charge currents Store function, allows safe storage current Time limit function Input voltage monitoring.

Features

Compact,portable

Graphical touch screen,easy control

Exclusive LiHV battery charging program

Regenerative discharge

Battery meter:cell voltage,internal resistance

20 Battery memories

Firmware upgrade

End voltage adjustable(for expert user only)



Specifications

DC input voltage12.0VDC 120VAC
Charge powermax.100W
Discharge powermax.30W
Charge current0.1~20.0A
Discharge current0.1~20.0A
Regenerative discharge powermax. 200W
Balance current400mA
LiPo/Li-Ion/LiFe/LiHV battery cell count1-6S
NiMH/NiCd battery cell count1-15cells
Pb battery voltage2V-24V
Weight450g
Dimension102*120*46mm
